Parker Hannifin Corporation

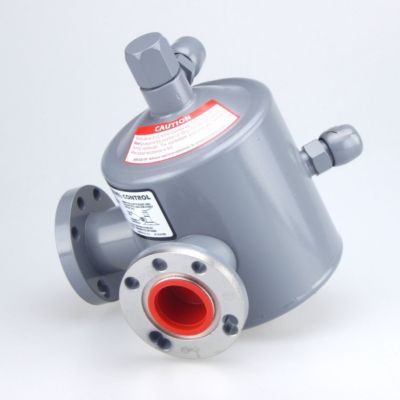

OL-60XH Oil Float (3) Bolts (2) Arms, Short Length Yes - *Centerline Of Sight Glass
OL60XH OL-60XH Oil Float (3) Bolts (2) Arms, Short Length Yes - *Centerline Of Sight Glass
SKU:OL60XH
Regular price
$421.57 USD
Regular price
Sale price
$421.57 USD
Unit price
/
per
Couldn't load pickup availability
Oil Level Controls
The purpose of the Sporlan Oil Level Control is to regulate the flow of oil to the compressor crankcase to maintain a minimum oil level as specified by the compressor manufacturer for any given application. The Oil Level Control is adjustable between 1/2 sightglass and 1/4 sightglass at any pressure differential between 0.35 and 6.2 bar. As the level of oil is lowered in the compressor crankcase by being pumped out, the float of the Oil Level Control is lowered and opens a needle valve allowing oil to flow from the oil reservoir to the compressor crankcase.
The purpose of the Sporlan Oil Level Control is to regulate the flow of oil to the compressor crankcase to maintain a minimum oil level as specified by the compressor manufacturer for any given application. The Oil Level Control is adjustable between 1/2 sightglass and 1/4 sightglass at any pressure differential between 0.35 and 6.2 bar. As the level of oil is lowered in the compressor crankcase by being pumped out, the float of the Oil Level Control is lowered and opens a needle valve allowing oil to flow from the oil reservoir to the compressor crankcase.
